Specification

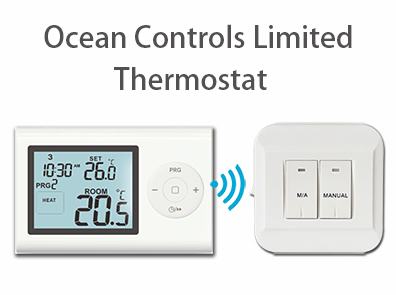

Transmitter / Receiver Wireless 7 Day programmable 6 Time & 6 Temp,per day, with backlight Thermostat ST2402RF

Transmitter (thermostat):

1.Programmability: 7 Day, 5/2 Day and 24 hour Programmable

2.Display Temperature Range:0°C~40°C (in 0.1°C increments)

3.Adjustable Temperature Range:5°C~35°C (in 0.5°C increments)

4.Temperature measurement accuracy: ±1°C (at 20°C)

5.Power Supply: DC 2x AAA 1.5V Alkaline Batteries

6.Switchable Current: 6 A (2 A inductive load), 230V

7.Low Battery Indicator: Display ““ when battery is less than 2.7V

5.Load Rating: 6(2)A, 230V

6.Low Battery Indicator: Display ““ when battery is less than 2.7V

8.Standby current:30uA, Lighting current ≤ 6mA

9.Backlight colour: White

10. Dimensions: 120 x 77 x 28 mm(without holder)

Receiver:

1. Power Supply: 230VAC, 50HZ

2. Operating Frequency:868.35MHZ

3. Transmission Distance: approx. 100m in open terrain

4. Consumption: 6W

5. Maximum Load: 6(2)A, 230V

6. Dimensions: 86 x 86 x 26 mm

Ocean Controls Limited was founded by an industrial engineer with 10 years experience in the design and manufacturer of top-end electronic room thermostats.

We provide OEM/ODM services to worldwide customers, including manufacturing, designing,engineering and tooling.

With many years of experience, our products feature unrivalled quality, reliability and durability. We export our products all over the world, especially to European and American markets. Currently our main products includ: non-programmable/programmable thermostats,dial/push button/touchscreen thermostats, wired and wireless thermostats,we can also make timer,immersion/capillary thermostat and other related heating system control parts as per the customer’s request. The products meet CE, R&TTE,FCC,UL and CSA approved quality standards.

Our factory has three sets of SMT,10 sets of injection molding machine and advanced moulding equipments, Monthly capacity is more than 50,000 pcs, and this can be expanded according to customer requirement.

We have a strong R&D team with more than 10 years experience in the thermostat field, They are seasoned in the design,develop and testing of electronic thermostats, HVAC controller and accessories. In addition, we have broad experience in RF remote control products like remote wireless thermostats. Based on the above, we can design/develop new models for you upon your technical specifications or samples.

As a company, we strive to excel in the quality of products we sell, the service we provide and the support we give. We are committed to continuous improvement and on building win-win relationships with our partners.
