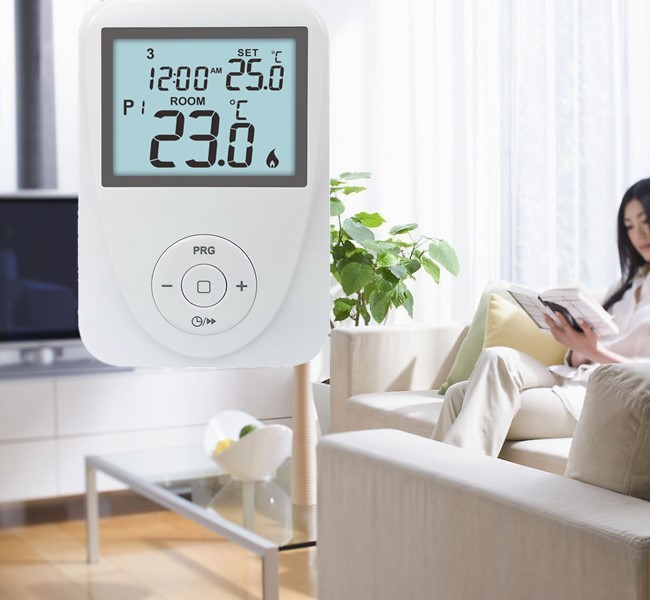

LCD 24Vac Digital Wired 7 Day Programmable Thermostat For
Temperature Control
Features:
• Large, easy to ready clear LCD display
• Various backlight color optional
• HEAT (Heating) / COOL (Cooling)
• Room Temperature Calibration adjustment (in -3~+3°C)
• Switching sensitivity adjustable
• Manual override mode and Holiday mode
• Keypad Lockout
• Contemporary design
• Factory pre-set programme
• Easy installation
Product Specification:
| Model No.: | ST2602 |
| Switchable Voltage: | 24 V AC / DC,...250 V AC; 50 Hz |
| Switchable Current: | 6 A (2 A inductive load) |
| Programmability: | 7 Day, 5/2 Day and 24 hourProgrammable |
| Temperature Range (°C): | 0°C-40°C in 0.1°C |
| Control Temp.Range (°C): | 5°C-35°C in 0.5°C |
| Temp.Meas.Accuracy: ±1°C (at 20°C) | ±1°C (at 20°C) |
| Power Source: | DC 2 x AAA 1.5V Alkaline batteries |
| Power Consumption | < 1W |
| Dimensions: | 130 x86 x30 mm |
| |
• 7 Day programmable
• 6 Time & 6 Temp,per day
• Manual override mode
• 2 AAA size battery
• Contact rating:8(2)A 230VAC Max
• Keypad Lock function
• HEAT/ COOL mode switch

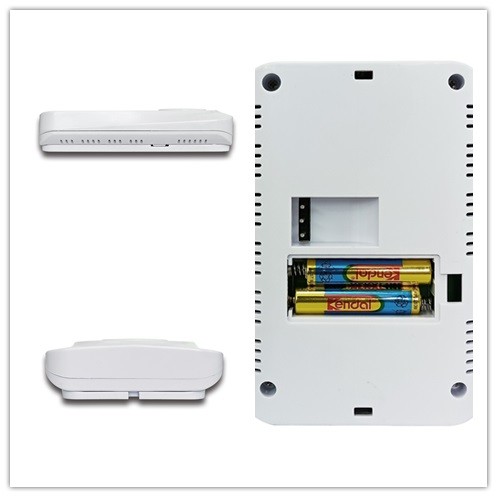

Product Detail:
Delivery Details:
1.7-50 days,according to the quantity and our stock.
2.usually by express,such as TNT,DHL,UPS,EMS,PEDEX,etc.Will take
about a week from sending to get to your address.
3.Warranty:We are responsible for any defects in quality or
workmanship within one year and repair them free of charge within
one year.
What we are manufacturing?
1>Programmable/Non-programmable thermostat
2>Wireless RF/Wired thermostat
3>Touch Screen/Dail/Push Button thermostat
4>Timer/Programmable/Humidity thermostat
5>Pipe/Cylinder Control
6>Ventilation Control
7>Underfloor Heating Control
8>Heating System Control Center
9>Provide OEM/ODM service to worldwide customer, including
manufacturing, design,engineering and tooling.
